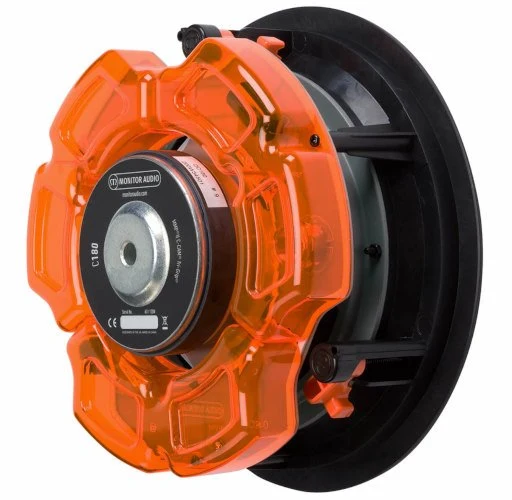

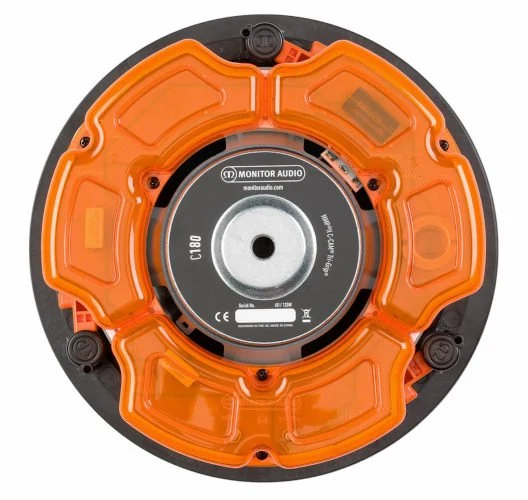

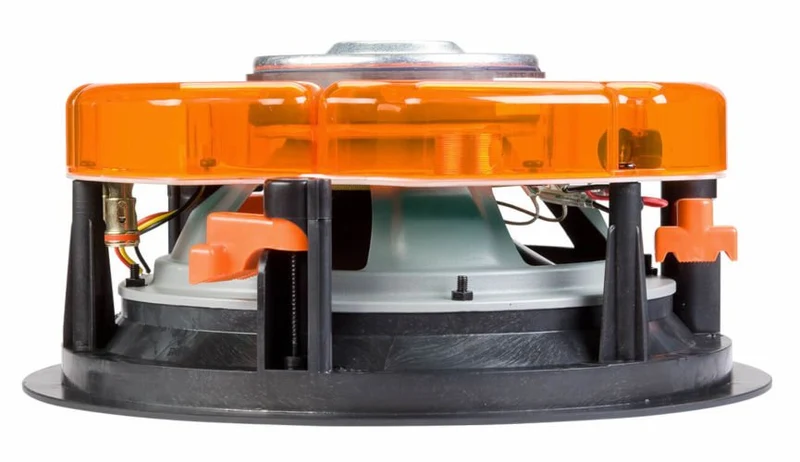

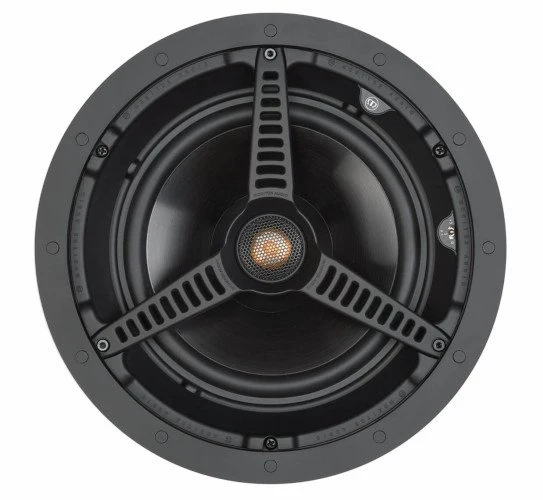

Monitor Audio C180 In-Ceiling Speaker

Monitor Audio C180 In-Ceiling Speaker
Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

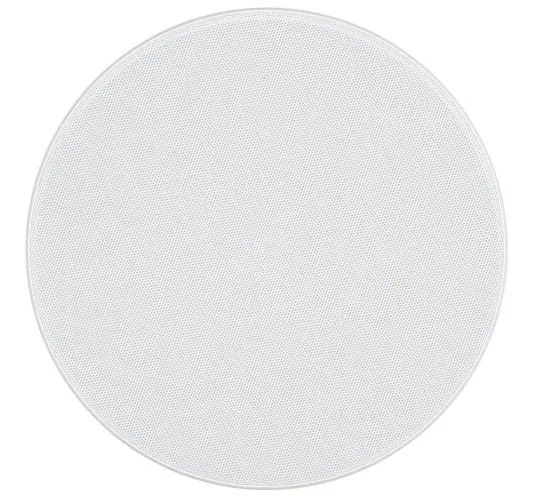

Optional square grille can be used with this model.

Specification
Frequency Response 50 Hz – 25 kHz
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 90 dB
Maximum SPL 111.6 dBA
Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 – 120 W
Drive Unit Complement 8" MMP II cone bass driver 1" C-CAM pivoting Gold Dome tweeter
Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille) 285 mm (111/4")
Overall Depth (Including Grille) 126 mm (415/16")
Mounting Depth 122 mm (413/16")
Cut-Out Hole Diameter 247 mm (93/4")
Fixing Type 3 position Tri-Grip dog fixings
Optional Square Grille - Outer Dimensions 285 x 285 mm (111/4")
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.72 kg (6 lb)
Pre-Construction Bracket CB8 Pre-Construction Bracket (Green)
Back Box CCBOX-R / CMBOX-R
